| Description | Gap Solution for Excessive Fire Door Bottom Undercut/Clearance — 20 Minute NGP-Edge? Intumescent Door Shoe | Model | GAP90? | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features

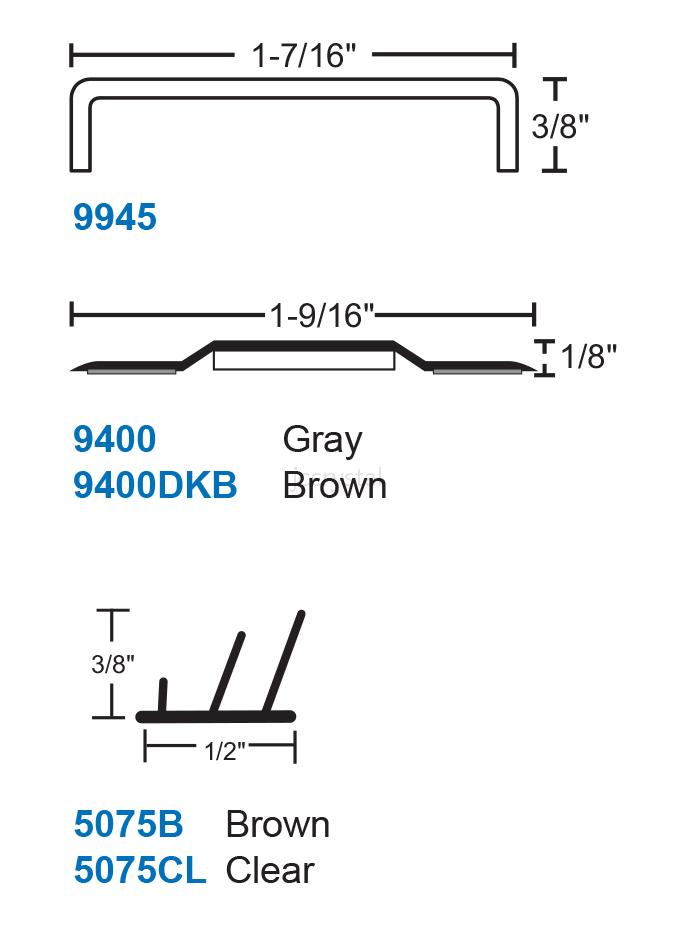

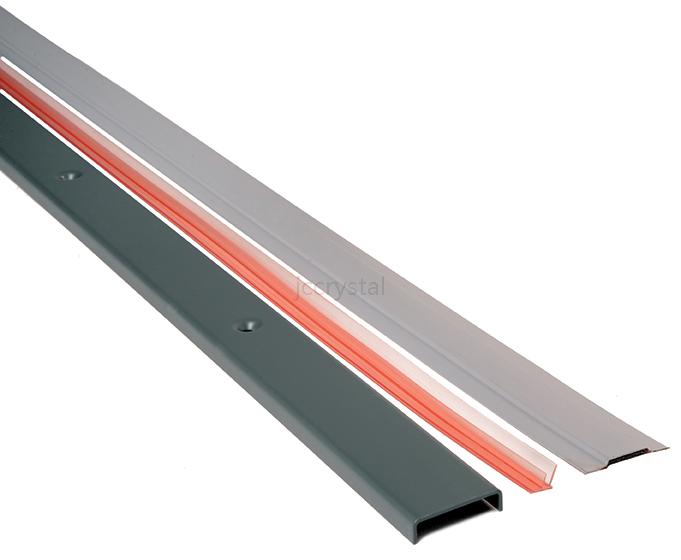

UL Certified Solution for Fire doors with Excessive clearance between door and frame over 1/8", up to 5/16" 90 minute rated UL Certified Miscellaneous Fire Door Accessory UL10B and UL10C wood or hollow metal fire doors Requires installation of ALL components 9945, 9400, 5075CL Available in 36", 48", 84" and 96" lengths Gray finish
Certifications
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
|
