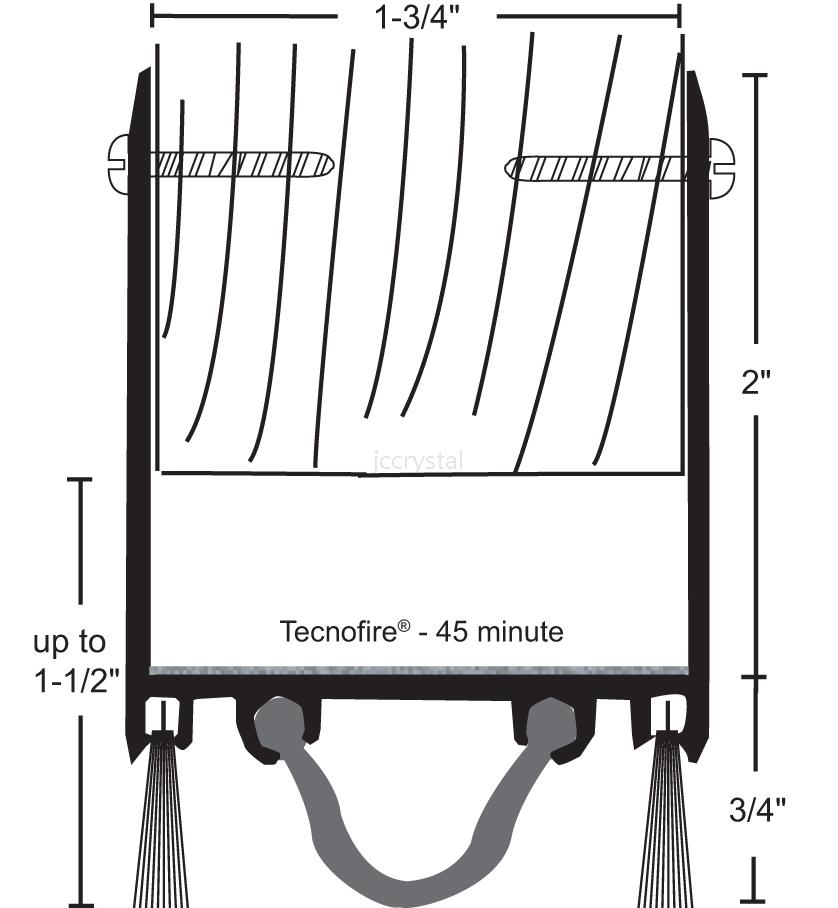

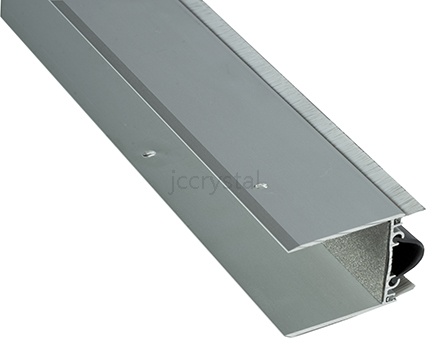

| Description | Gap Solution for Excessive Fire Door Bottom Undercut/Clearance — 45 Minute NGP-Edge? Intumescent Door Shoe | Model | 9245NWHA | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features
Aluminum alloy 6063, T5 temper Synthetic rubber polymer blend: Chloroprene and EPDM Very good abrasion resistance, tensile strength and memory Flame resistant Moisture resistant Temperature range -20°F to 200°F Good resistance to ozone, sunlight and aging Restricts the passage of smoke #6 x 3/4" stainless steel SMS furnished Neoprene is black, nylon brush is gray Anodized aluminum
Options
Certifications
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
|
