| Description | Aluminum Saddle Threshold, 3/8" x 3" | Model | 211 | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features

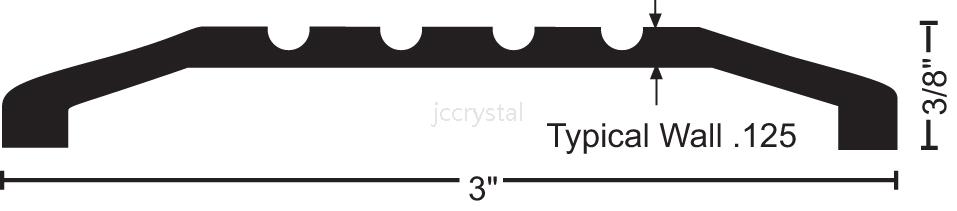

Aluminum alloy 6063, T5 temper 3" wide x 3/8" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness: .125" Weight: .43 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Mill finish
Options
Certifications
ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
|
