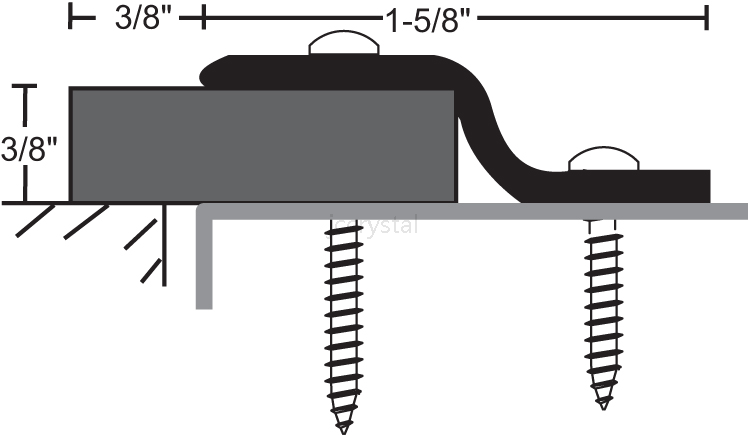

| Description | Anodized Aluminum Overlapping Astragal with Neoprene Seal | Model | 109NA | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features
Aluminum alloy 6063, T5 temper Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam Very good abrasion resistance, tensile strength and memory Flame resistant Moisture resistant Temperature range -20°F to 200°F Good resistance to ozone, sunlight and aging BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration #6 x 1" & #6 x 3/4" stainless steel SMS furnished Screw holes slotted for adjustment Neoprene is black Anodized aluminum
Certifications
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
 ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
|
