| Description | Anodized Aluminum Adjustable Neoprene Perimeter Seal | Model | 106NA | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features

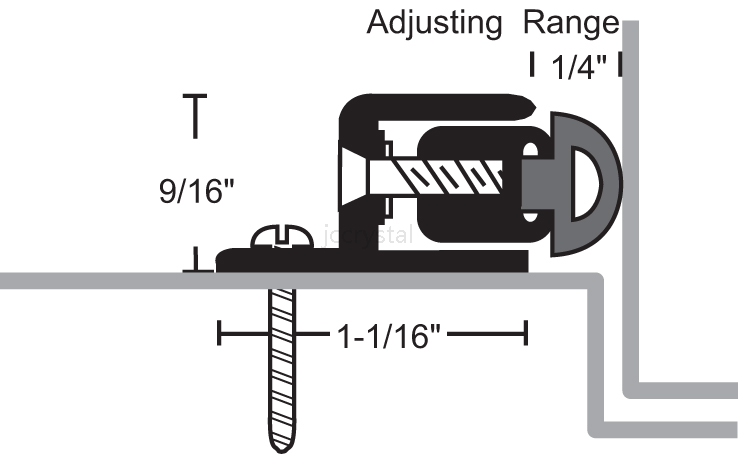

Aluminum alloy 6063, T5 temper Synthetic rubber polymer blend: Chloroprene and EPDM Very good abrasion resistance, tensile strength and memory Flame resistant Moisture resistant Temperature range -20°F to 200°F Good resistance to ozone, sunlight and aging BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration Adjustment screws on 10" centers allow adjustment without re-positioning mounting location #6 x 3/4" or #6 x 1-1/2" stainless steel SMS furnished Neoprene is black Anodized aluminum
Options
Certifications
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
|
