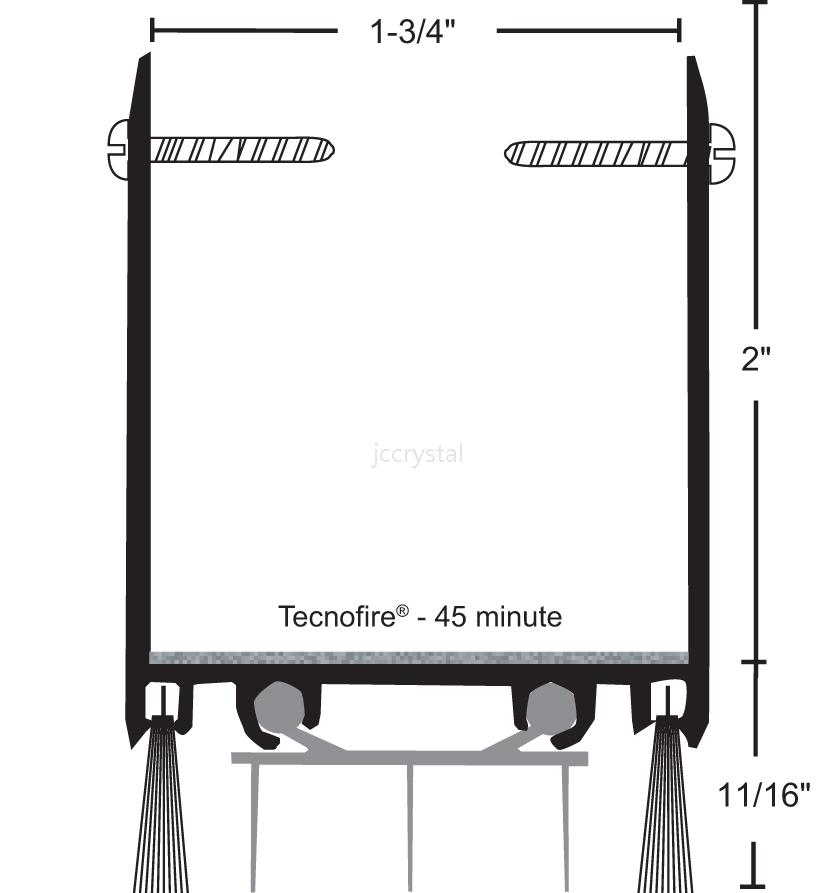

| Description | Gap Solution for Excessive Fire Door Bottom Undercut/Clearance — 45 Minute NGP-Edge? Intumescent Door Shoe | Model | 9245TWHA | | Material | Aluminum alloy 6063-T5 | Color | Anodized white |
Product Features
Aluminum alloy 6063, T5 temper Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer Economical Flame resistant Moisture resistant Temperature range 0°F to 140°F Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration Restricts the passage of smoke #6 x 3/4" stainless steel SMS furnished Thermoplastic is dark brown, nylon brush is gray Anodized aluminum
Options
Certifications
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16”
|
