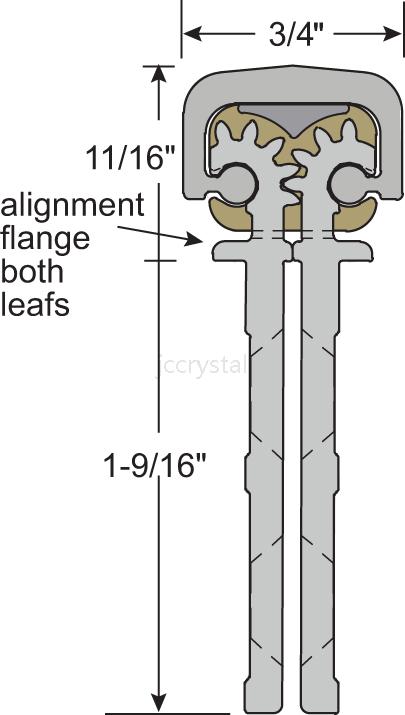

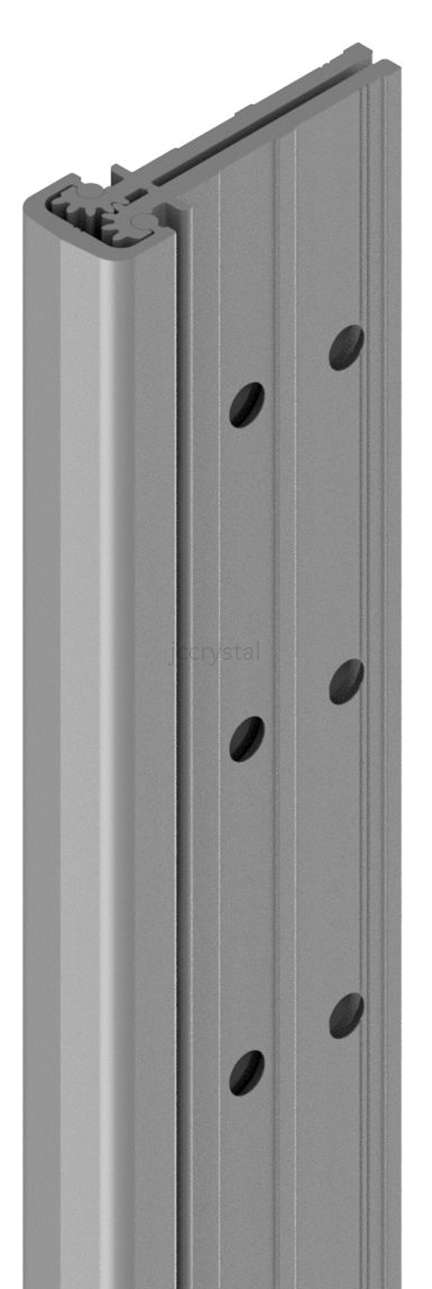

| Description | Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors | Model | HD1100A-95 | | Material | Aluminum alloy 6063-T6 | Color | Anodized white |
Product FeaturesAluminum alloy 6063-T6; Anodized after machining Anodized aluminum finish Specially designed involute intermeshing gears Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt Proprietary teflon infused self-lubricating wear resistant bearings No hinge reinforcement necessary except on extremely heavy, extremely highfrequency or extra wide doors Lifetime of the door opening warranty #12-24 TEK MS “LL” model for doors up to 1,000 lbs. features lead-lined dual row hole pattern Standard lengths: 83", 85", 95", 119
Options
#12 x 1-1/2" wood screws Torx security TEK screws Cut to net length Anti-ligature hospital tip - specify “ALHT” Dutch door prep - specify door handing, top door leaf length, and clearance between leafs
Certifications
ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. door, Grade 2 - 300 lb. door, Grade 1 - 600 lb. door
Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".
|
